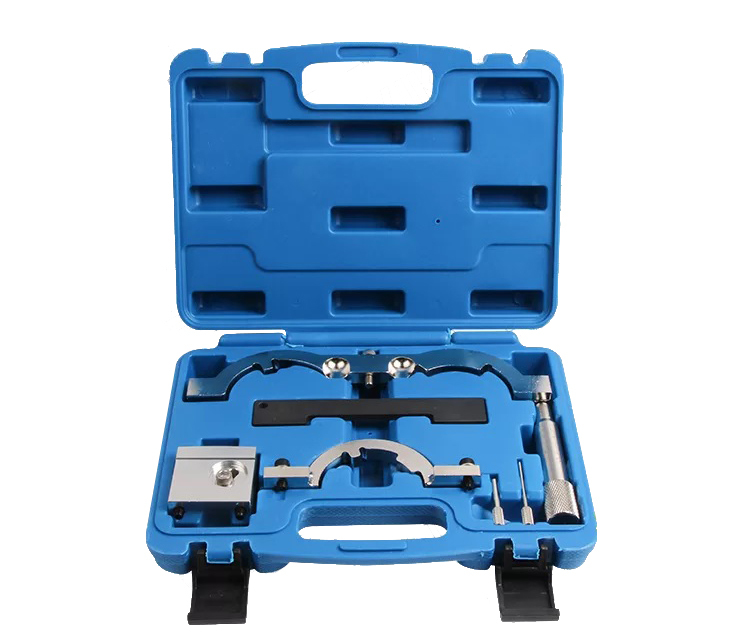

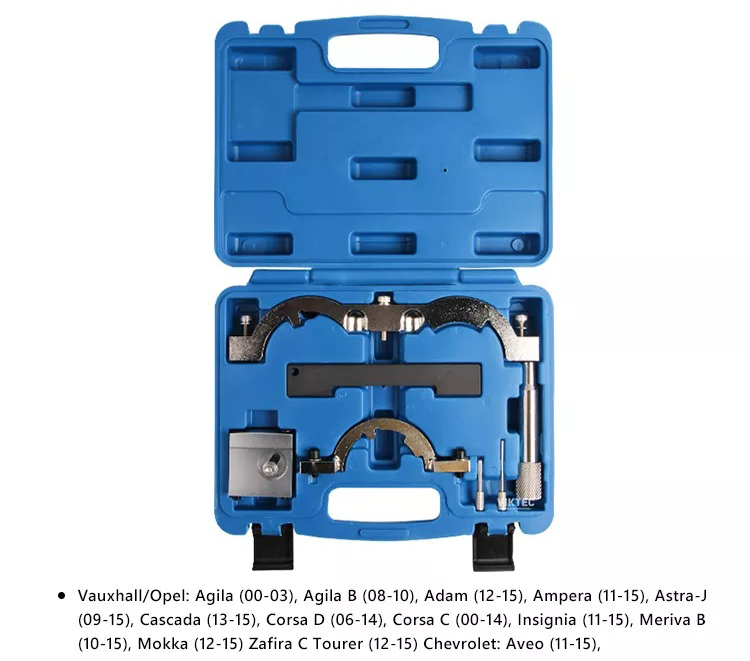

7pc Petrol Engine Timing Chain Tool Kit for Holden Cruze JH Barina TM Trax TJ A14NET 1.4L Turbo

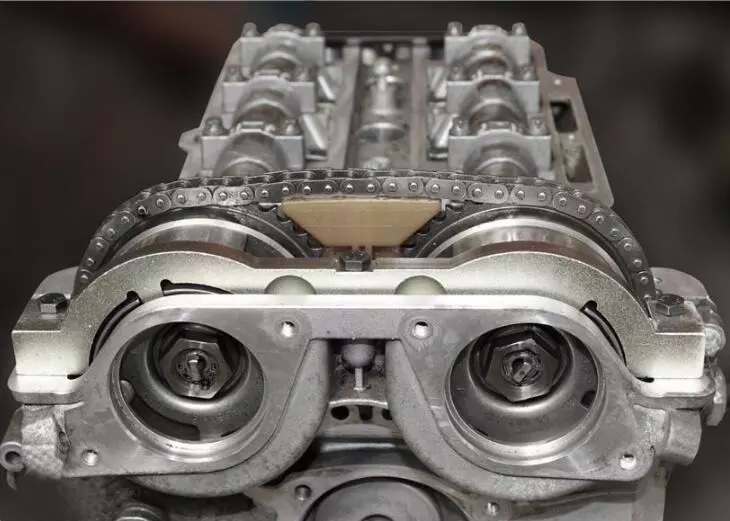

Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain fitted to the Vauxhall/Opel twin Cam engines below.
Removal of the timing chain will require the removal of the sump.
Ensure the engine is at TDC No 1 cylinder.
Ensure the chain tensioner is fully retracted and held in the retracted position using a suitable pin.
Remove the crankshaft pulley using an appropriate pulley holding tool.

1.0 1.2 1.4 Turbo Engine Timing Tools Set from 2009 – onwards.

Application:

• Vauxhall / Opel :
• Adam 1.2 1.4 (2012- ), Ampera 1.4 (2011- ),
• Astra-J 1.4 (2009),
• Corsa-D 1.0 1.2 1.4 (2009-),Cascada 1.4 (2013-),
• Insignia 1.4 (2011-), Meriva-B 1.4 (2010-),
• Mokka 1.4 (2012-), Zafira-C Tourer 1.4 (2011-)
• Aveo1.2 1.4 (2011-), Cruze 1.4 (2011-), Orlando 1.4 (2012-)

Content:

• Crankshaft Locking Pin

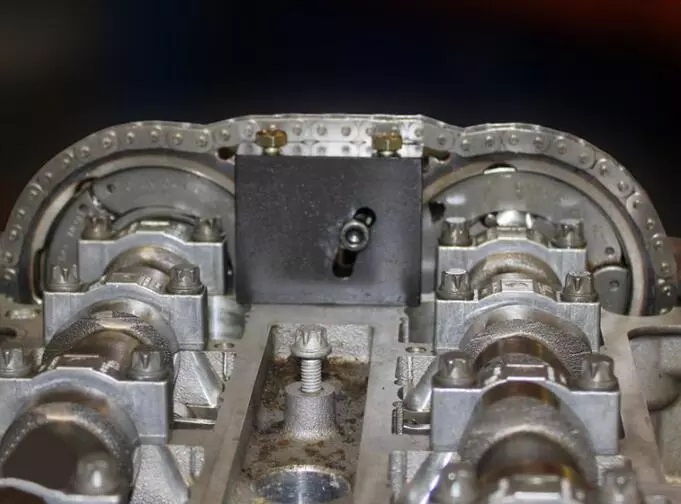

• Camshaft Setting Plate
• VVT Sensor Setting Tool (1.0L)
• VVT Sensor Setting Tool (1.2 & 1.4L)
• Camshaft Sprocket Holding Tool
• Chain Tensioner Locking Pin
• Belt Tensionet Locking Pin

Engines Codes:

1.0: A10XEP (LDB),
1.2: A12XEL (LWD), A12XER (LDC),
1.4: A14XEL (L2Z), A14XER (LDD), LDU
1.4(T): A14NEL (LUH), A14NET (LUJ), Twinport / ecoFLEX engines
LWD, L2Z, LDD, LUU/A14XFL, LDD/A14XER, LDD/A14XEL, LUJ/114NET, LUJ/A14NEL,
A10XEP, A12XEL, A12XER, A14XEL, A14XER, A14NEL, LUJ/A14NET, LDD/A14XER, LUJ/A14NET, LUH/A14NEL, LUJ/A14NET, LUJ/A14NEL, L2Q/A12XEL, LDC/A12XER, LWD/A12XEL, LDD/A14XEL, LDD/A14XER
